Tokenization
The Tokenization section is used to configure token-related functionality, including network token usage and integration with external token providers. It provides configuration for both internally managed tokens and externally supplied tokens.

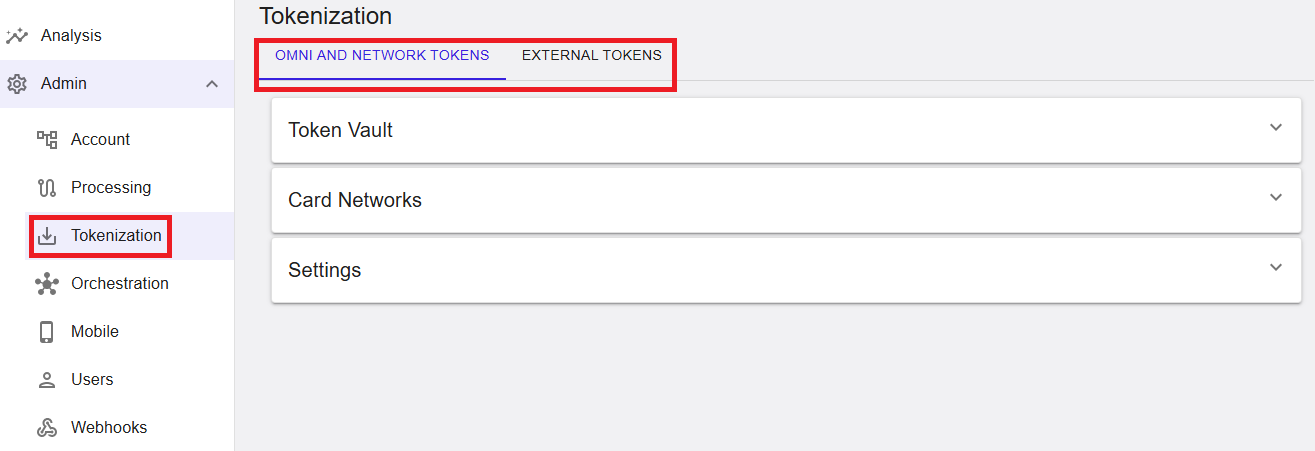

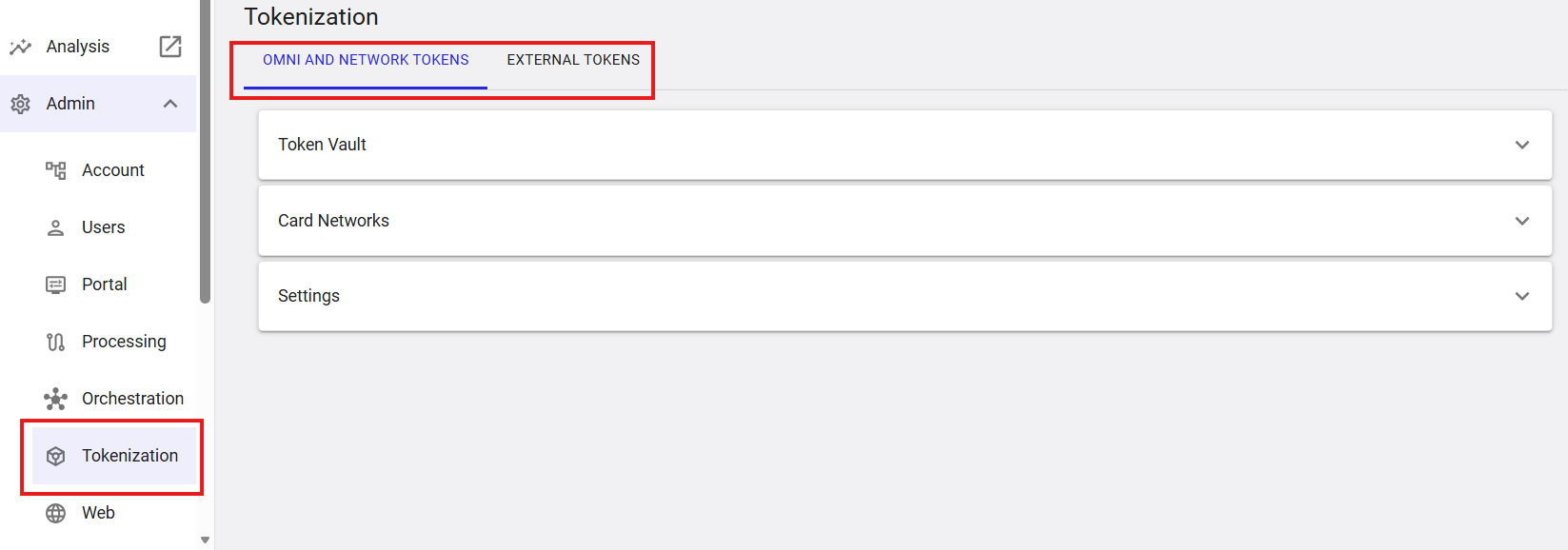

Figure 1: Admin – Tokenization overview
Where to find this screen
- In the left navigation menu, select Admin.
- Select Tokenization.
Tokenization Tabs
- OMNI AND NETWORK TOKENS
- EXTERNAL TOKENS
Omni and Network Tokens
The Omni and Network Tokens tab is used to configure network token support and onboarding data required by card networks.

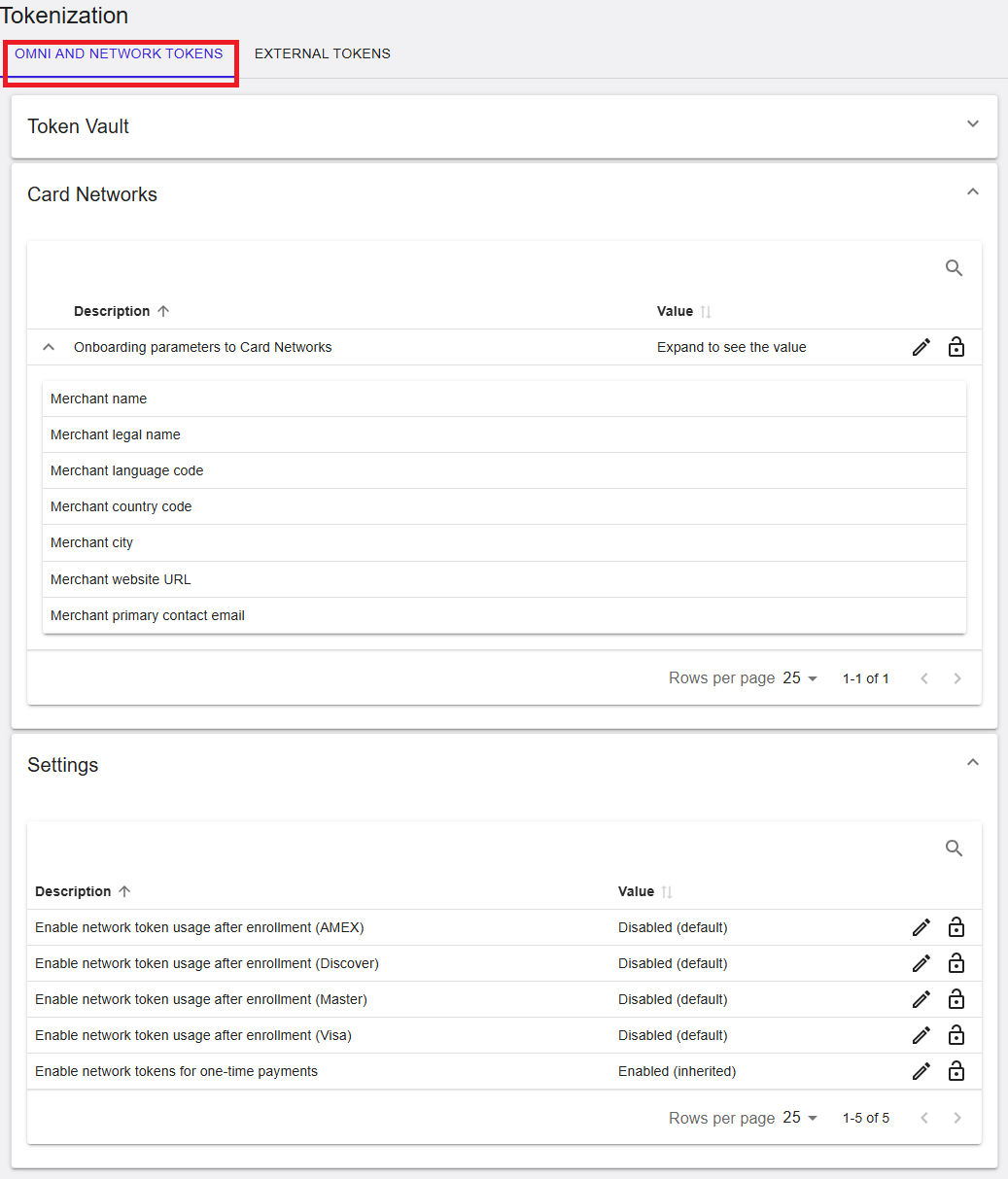

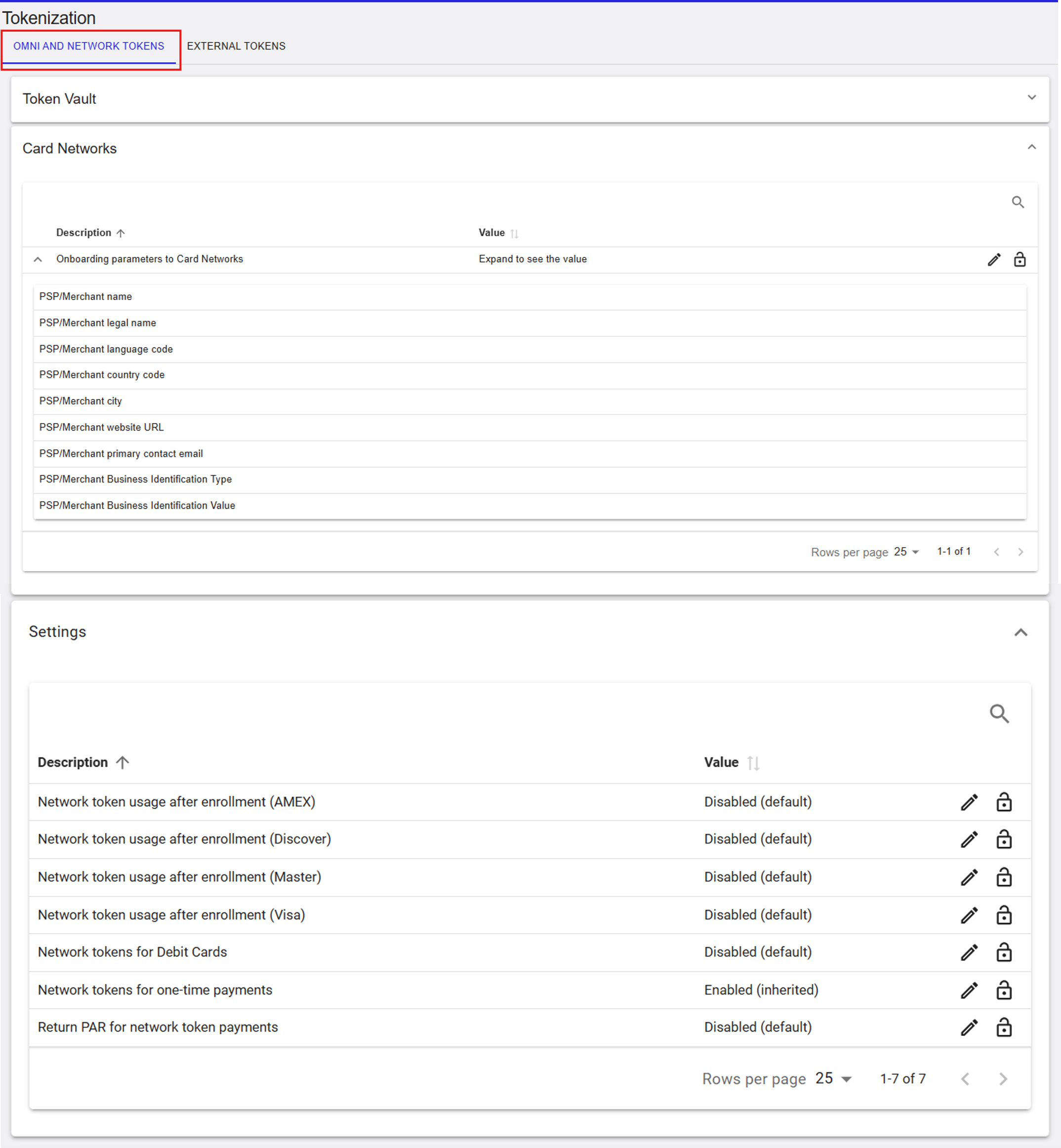

Figure 2: Omni and Network Tokens – main view

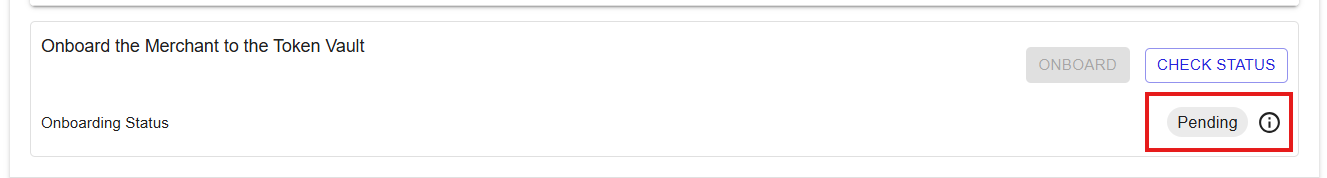

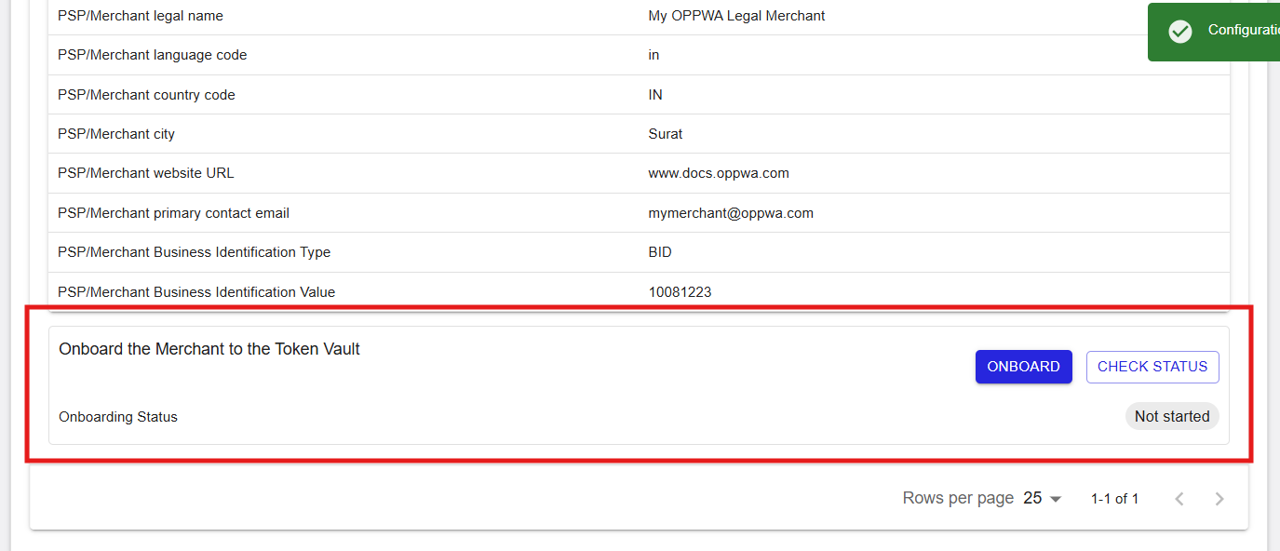

Token Vault
The Token Vault section represents the secure storage used for tokenized credentials. This section is informational and reflects the configured token vault for the selected scope.
Card Networks
The Card Networks section contains onboarding parameters required by card networks for network token enablement.
- Merchant name
- Merchant legal name
- Merchant language code
- Merchant country code
- Merchant city
- Merchant website URL
- Merchant primary contact email
Card Networks (RiRo)
| Name | Description | Value |
|---|---|---|
| Onboarding parameters to Card Networks | Onboarding parameters required to register and enrol the merchant with card network tokenisation schemes, including merchant identity, location, and contact details. | Configured values |
Settings (Network Tokens)
- Enable network token usage after enrollment (AMEX)
- Enable network token usage after enrollment (Discover)
- Enable network token usage after enrollment (Mastercard)
- Enable network token usage after enrollment (Visa)
- Enable network tokens for one‑time payments
Network Token Settings (RiRo)
| Name | Description | Value |
|---|---|---|
| Enable network token usage after enrollment (AMEX) | Uses AMEX network tokens for processing after successful enrollment. | Enabled / Disabled / Inherited |
| Enable network token usage after enrollment (Discover) | Uses Discover network tokens for processing after successful enrollment. | Enabled / Disabled / Inherited |
| Enable network token usage after enrollment (Mastercard) | Uses Mastercard network tokens for processing after successful enrollment. | Enabled / Disabled / Inherited |
| Enable network token usage after enrollment (Visa) | Uses Visa network tokens for processing after successful enrollment. | Enabled / Disabled / Inherited |
| Enable network tokens for one‑time payments | Applies network tokenisation to one‑time payment transactions in addition to recurring and credential‑on‑file use cases. | Enabled / Disabled / Inherited |
External Tokens
The External Tokens tab is used to configure support for tokens provided by external tokenization services.

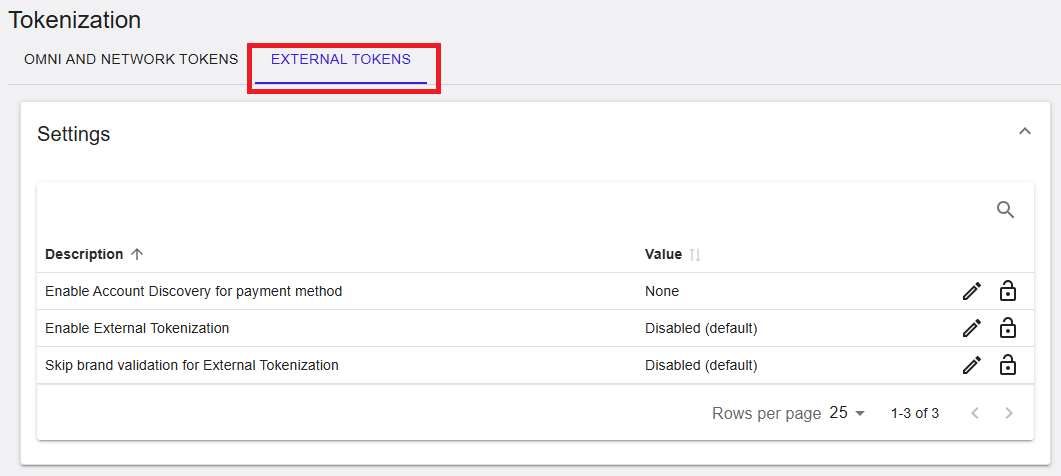

Figure 3: External Tokens – settings
Settings (External Tokens)
- Enable Account Discovery for payment method
- Enable External Tokenization
- Skip brand validation for External Tokenization
External Token Settings (RiRo)
| Name | Description | Value |
|---|---|---|
| Enable Account Discovery for payment method | Enables Account Discovery to identify existing tokenised credentials for the selected payment method. | Configured value |
| Enable External Tokenization | Enables integration with an external tokenization provider for storing and retrieving payment credentials. | Enabled / Disabled / Inherited |
| Skip brand validation for External Tokenization | Skips card brand validation during the external tokenization flow. | Enabled / Disabled / Inherited |
Summary
The Admin → Tokenization section provides configuration for both network‑managed and externally supplied tokens. It supports card network onboarding, network token usage control, and integration with external tokenization providers.
